Motomanų Diskusijos » Remontas » yamaha fz1n sklendziu synchro

| 2016-11-21 drugowaz | 6/1660 žinut.





Pėsčiasis narys
400cc ***
Avataras
#1

yamaha fz1n sklendziu synchro

Gal kas galit tiksliai pasakyt kaip reguliuot sklendes sitam modeliui? 09m.
Manualas duoda koks turi but vakumas. Ir nieko daugiau.
Prie kokios temperaturos ir koks sklendziu eiliskumas turi but reguliuojant.
3 sklende raso kaip atskaitinis taskas nuo jos reguliuot likusias.
2016 Lapkričio 21 19:44 "In life there's nothing to help you,but your hands and your own head"..
900
Britvininkas
900cc *****
Avataras
#2

Pradziai susireguliuoji laisvas apsukas kaip tau atrodo kad bus gerai,su mintim kad taip ir vazinesi ir nieko nebereguliuosi,nes kitaip visas tavo sinhras nueis vejais.
Jei turi atskaitos taska tai valio,pagal ji ir reguliuok.Nors cia turbut tik teorija,nes praktikoj to atskaitos tasko nelabai reik,svarbu kad visu sklendziu parodymai butu vienoj linijoj.
Del temperaturos,pradziai pasildai,o paskui temperatura bus maksimali,bo per 5 min nieko nepadarysi.
Gal gali smulkiau papasakot ka reiskia tavo sakinys;Manualas duoda koks turi but vakumas; ?
2016 Lapkričio 22 09:37 „Motociklas visada nuramina protą. Tai motociklo esmė."
Pėsčiasis narys
400cc ***
Avataras
#3

Manualas raso tiri but 22.5cmhg.

Trecia sklende kaip atskaitos taskas . O kitas daryt pagal ja. Pas amerikonus radau kitu reguliavimo budu. Bet ta 22.5cmhg nepavyko isgaut to skaiciaus. Manualas sausai apraso.
2016 Lapkričio 22 09:47 "In life there's nothing to help you,but your hands and your own head"..
Kuvaldaliotas
2200cc *******
Avataras
#4

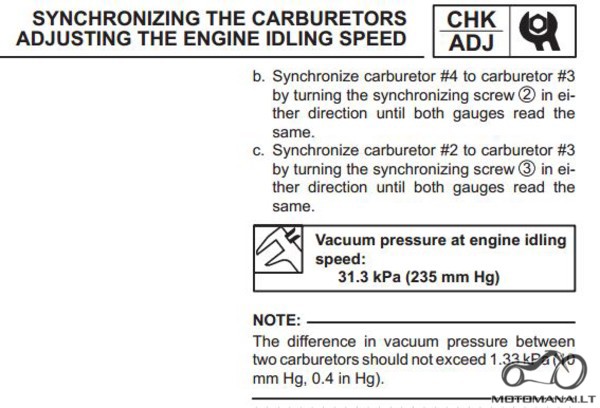

Yamaha manuale nurodo koks slegis turi buti kolektoriuje

Kokybiškas nuotraukas mato prisijungę Motomanai.lt nariai.
2016 Lapkričio 22 09:51 redagavo CerBeR 2016 lapkričio 22 09:52 if you don't ride in the rain, you DON'T ride

Barry Sheene is in heaven watching us suck.
Pėsčiasis narys
400cc ***
Avataras
#5

Pas mane ne karbai ir skaiciai kiti. Neraso apie eiliskuma nieko. Pajungi prietaisa prie vakumo slanguciu. Ir sukineji varztus.
Tai reikia laikyt temp nuo 140 iki 170f. Jei virsija gesint laukt kol atves ir reguliuot toliau.
Nes jei sureguliuosi prie aukstesnes temp neis laivu apsuku sureguliuot.

Cia is amerikonu vienas is budu kai neina padaryt synchro nes susuki varztus iki galo ir vistie nesusireguliuoja.
Tai cia apraso biski kita buda
k... This is a picture of a TB intake removed so you can easily see where these are located. There are 4 individual vacuum adjustment screws but you will be working with only the two indicated with the GREEN and not touching the two indicated with the RED. The middle screw highlighted in GREEN is what you will use to balance #2 and #3 cylinders.

Some notes first:
Adjusting any screw may cause the meter to change for OTHER cylinders.You may need to go back and re-adjust cylinders you'd already adjusted.Do NOT adjust the bike with the temp over 170. Shut it down and let the bike cool off. Be paitent and do not rush this!As the bike's temp goes up, the numbers you are working with also rise. Don't try to only shoot for the magical 22. It is more important that these are balanced, not all at a magical number.REMEMBER: Do not touch the individual screws for #2 & #3!!! Use only the middle "spring-tension" screw for these two!


Remove the plastic plugs from the vacuum hoses between cylinders 1 & 3 and connect the guage positions 1 & 3 accordingly. Now do the same for #2 & #4.Start the bike and warm to 140 degrees. Adjust idle (if needed) to 1250 RPMs. (A couple of high volume fans will help unless it is very cool outside when you do this. You don't want to be over 170 degrees and making adjustments.Adjust the middle screw to balance #2 & #3. Turning one way will lower one and raise the other. Turning the other way reverses this.Gently roll the throttle to about 2500 RPMs and gently roll back. Check #2 & #3 again.With 2 & 3 balanced, adjust #1 to match. Do the same throttle step and check again.With 1, 2, & 3 balanced, now adjust #4 to match. Same throttle steps again.Readjust any screw as needed.
2016 Lapkričio 22 10:34 "In life there's nothing to help you,but your hands and your own head"..
Pėsčiasis narys
400cc ***
Avataras
#6

Tik tas centrinis varztas kurio pagalba pirma reguliuoja 2- sklende yra po oro filtro deze. Tai klausimas ar galima reguliuot nuemus filtra ir ta deze ir atjungus isiurbiamo oro temp davikli
2016 Lapkričio 22 10:35 "In life there's nothing to help you,but your hands and your own head"..
Pėsčiasis narys
400cc ***
Avataras
#7

Zodziu dar atstovybej pasitikslinau. Del temperaturos. Nera konkrecios,rekomendavo 5-7minutes pasildyt. Galima reguliuot be oro filtro dezes patogiau geriau matos. Isiurbiamo oro temp dacikas pajungtas turi but. Laukiu carbtune pro. Bandysiu zaist.
2016 Lapkričio 22 12:29 "In life there's nothing to help you,but your hands and your own head"..
